This tool fills the selected area with a gradient blend of the foreground and background colors by default, but there are many options. To make a blend, drag the cursor in the direction you want the gradient to go, and release the mouse button when you feel you have the right position and size of your blend. The softness of the blend depends on how far you drag the cursor. The shorter the drag distance, the sharper it will be.
There are an astonishing number of things you can do with this tool, and the possibilities may seem a bit overwhelming at first. The two most important options you have are the Gradient and the Shape. Clicking the Gradient button in the tool options brings up a Gradient Select window, allowing you to choose from among a variety of gradients supplied with GIMP; you can also construct and save custom gradients.
For Shape, there are 11 options: Linear, Bilinear, Radial, Square, Conical (symmetric), Conical (asymmetric), Shapeburst (angular), Shapeburst (spherical), Shapeburst (dimpled), Spiral (clockwise), and Spiral (counterclockwise); these are described in detail below. The Shapeburst options are the most interesting: they cause the gradient to follow the shape of the selection boundary, no matter how twisty it is. Unlike the other shapes, Shapeburst gradients are not affected by the length or direction of the line you draw: for them as well as every other type of gradient you are required to click inside the selection and move the mouse, but a Shapeburst appears the same no matter where you click or how you move.
![[Tip]](../images/tip.png)
|
Tip |
|---|---|
|
Check out the Difference option in the Mode menu, where doing the same thing (even with full opacity) will result in fantastic swirling patterns, changing and adding every time you drag the cursor. |
The Blend Tool can be called in the following order, from the image-menu: / / .
The Tool can also be called by clicking the tool icon:
The L key will change the active tool to Gradient Fill.
Ctrl is used to create straight lines that are constrained to 15 degree absolute angles.

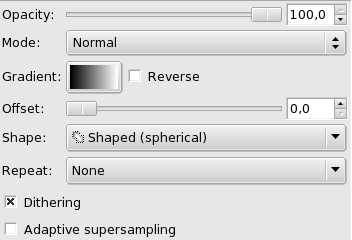

The available tool options can be accessed
by double clicking the Gradient Tool icon.
The Opacity slider sets the transparency level for the gradient. A higher opacity setting results in a more opaque fill and a lower setting results in a more transparent fill.
The Mode dropdown list provides a selection of paint application modes. A list of these modes can be found in Section 2, “ Layer modes ”.
A variety of gradient patterns can be selected from the drop-down list. The tool causes a shading pattern that transitions from foreground to background color or introducing others colors, in the direction the user determines by drawing a line in the image. For the purposes of drawing the gradient, the Reverse checkbox reverse the gradient direction with the effect, for instance, of swapping the foreground and background colors.
The Offset value permits to increase the “slope” of the gradient. It determines how far from the clicked starting point the gradient will begin. Shapeburst forms are not affected by this option.
The GIMP provides 11 shapes, which can be selected from the drop-down list. Details on each of the shapes are given below.
The Lineargradient begins with the foreground color at the starting point of the drawn line and transitions linearly to the background color at the ending point.
The Bi-Linear shape proceeds in both directions from the starting point, for a distance determined by the length of the drawn line. It is useful, for example, for giving the appearance of a cylinder.
The Radial gradient gives a circle, with foreground color at the center and background color outside the circle. It gives the appearance of a sphere without directional lighting.
There are four shapes that are some variant on a square: Square, Shapeburst (angular), Shapeburst (spherical), and Shapeburst (dimpled). They all put the foreground color at the center of a square, whose center is at the start of the drawn line, and whose half-diagonal is the length of the drawn line. The four options provide a variety in the manner in which the gradient is calculated; experimentation is the best means of seeing the differences.
The Conical(symmetrical) shape gives the sensation of looking down at the tip of a cone, which appears to be illuminated with the background color from a direction determined by the direction of the drawn line.
Conical(asymmetric) is similar to Conical(symmetric) except that the "cone" appears to have a ridge where the line is drawn.
The Spiral tools provide spirals whose repeat width is determined by the length of the drawn line.
There are two repeat modes: Sawtooth Wave and Triangular Wave. The Sawtooth pattern is achieved by beginning with the foreground, transitioning to the background, then starting over with the foreground. The Triangular starts with the foreground, transitions to the background, then transitions back to the foreground.
Dithering is fully explained in the Glossary
Adaptive Supersampling is a more sophisticated means of smoothing the "jagged" effect of a sharp transition of color along a slanted or curved line.
